Description

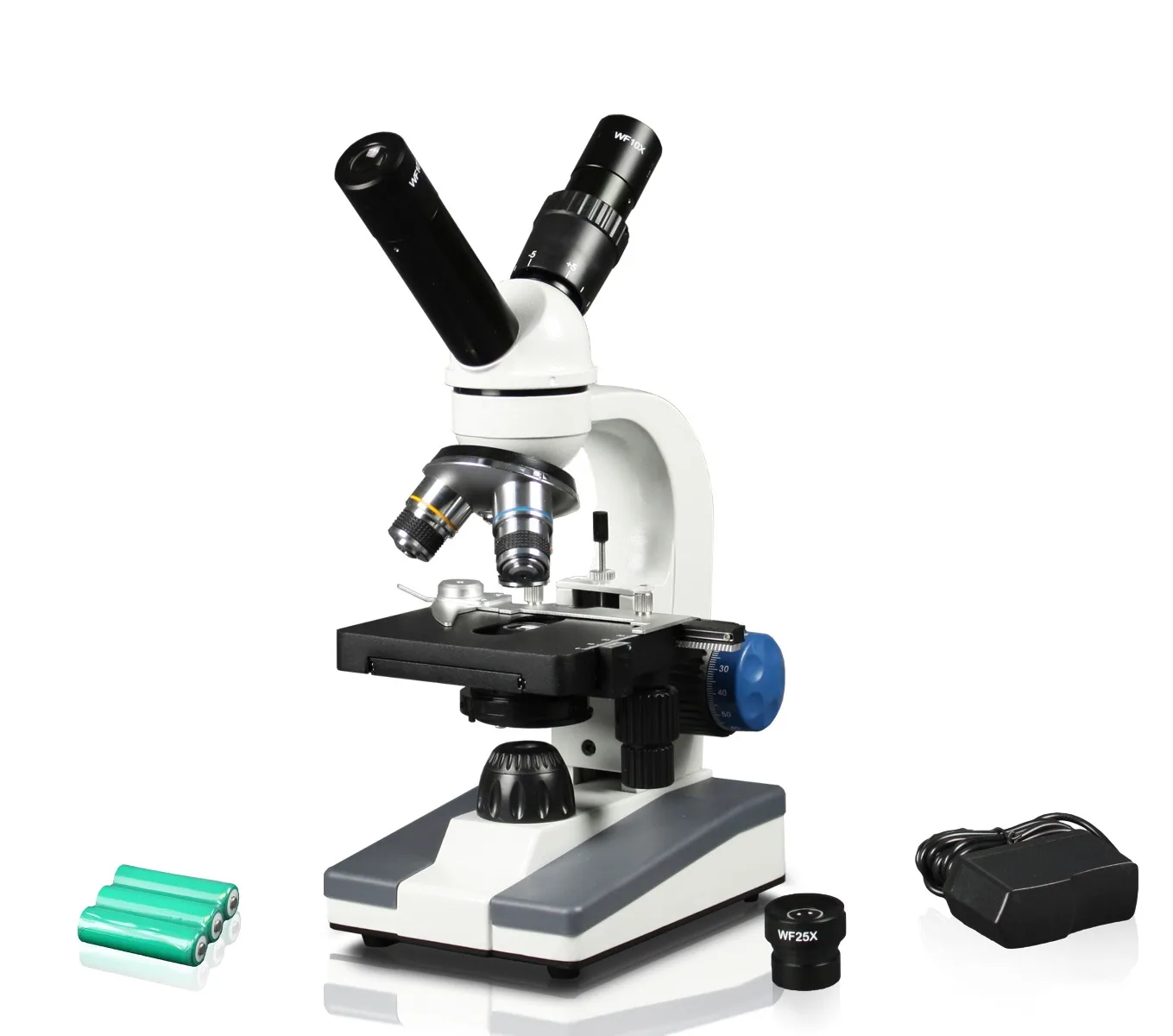

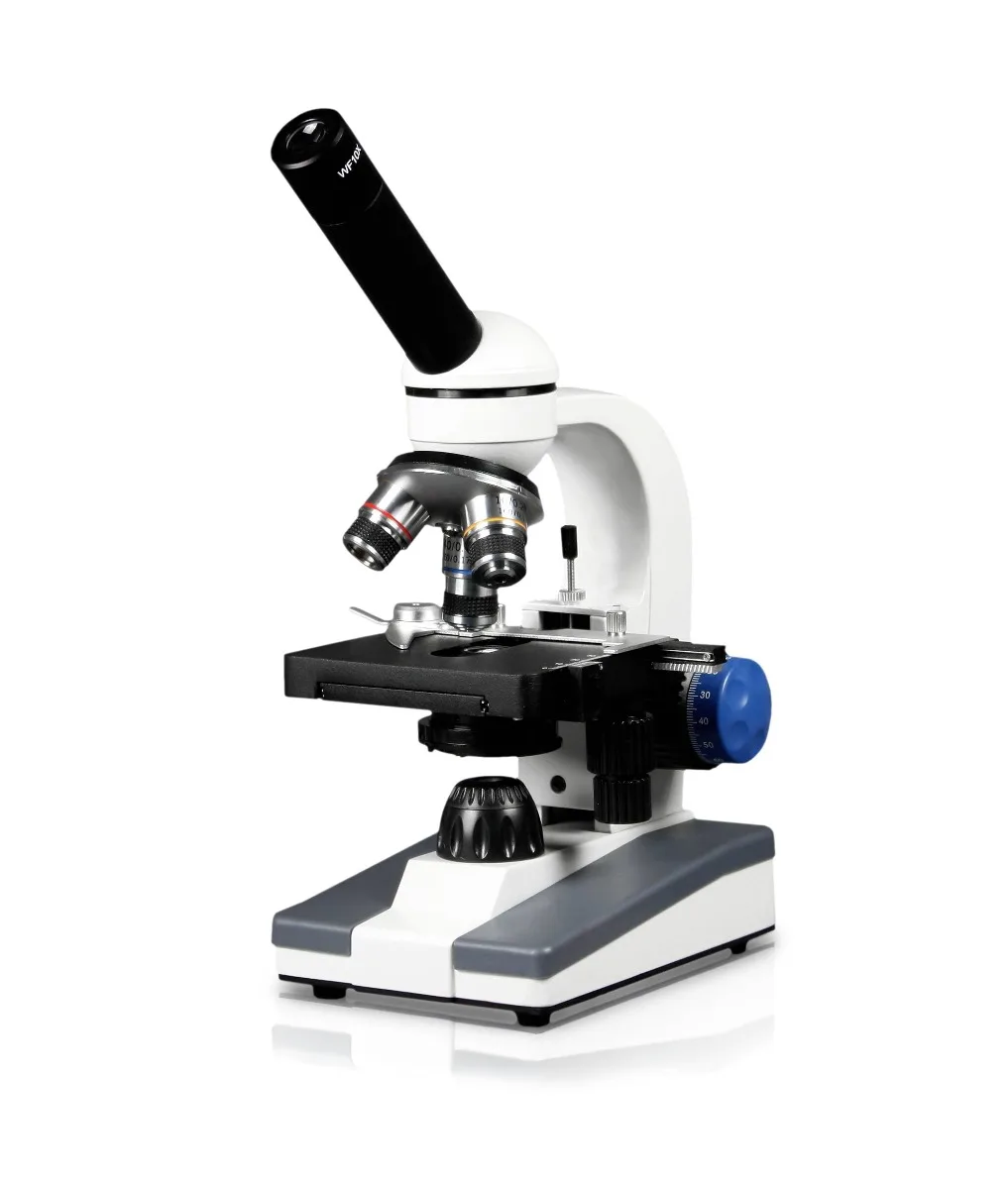

These compound microscopes have a 45° viewing head that rotates 360°. Achromatic objectives are parfocaled, parcentered and color-coded to provide sharp, color-corrected magnified images. Brightfield LED illumination illuminates the specimen from below, making the specimen appear bright, but much darker then the bright background. An iris diaphragm controls the amount of light illuminating the specimen. The built-in mechanical stage allows for precise, accurate positioning and smooth movement of the slide. Rugged metal components engineered for years of reliable performance. Packed in a fitted Styrofoam box and includes a dust cover and instruction manual. 5-year limited warranty excluding bulbs.
| ITEM NO. |
HEAD | OBJECTIVES | ILLUMINATION |
| 2058-S-LED | Monocular | 4X, 10X, 40XR | LED Corded |
| 2058-S-RC | Monocular | 4X, 10X, 40XR | LED Cordless |
| 2058-ST-LED | 45° Dual View | 4X, 10X, 40XR | LED Corded |
| 2058-ST-RC | 45° Dual View | 4X, 10X, 40XR | LED Cordless |
Specifications
| Model | 2058-S-LED 2058-S-RC |
2058-ST-LED 2058-ST-RC |
| Head | Monocular head, 45° inclined, 360° rotatable | Dual view head, 45° inclined, 360° rotatable |
| Eyepiece | 10X wide-field eyepiece with pointer 25X wide-field eyepiece |
Two 10X wide-field eyepieces, one with pointer One 25X wide-field eyepiece |
| Nosepiece | Three position nosepiece with positive stop clicks | |
| Objectives | 4X, 10X, 40X glass achromatic objectives, parfocaled, parcentered, color-coded | |
| Stage |
4″ x 3.5″ built-in, double layer mechanical stage with smooth X-Y travel | |
| Condenser | 0.65 N.A. condenser | |
| Diaphragm | Iris diaphragm | |
| Focusing | Coaxial coarse and fine focus control with built-in slip clutch and rack stop | |
| Illumination | LED illumination with light intensity control | |
| Power | LED: 3-wire grounded power cord RC: 3 AA NiMH batteries or AC adapter (both included) | |
| Warranty | 5 year limited warranty | |
